Quick Details

  • Type: Boxing Machine
  • Condition: New, New
  • Application: Machinery & Hardware
  • Packaging Type: iron shelf
  • Packaging Material: Paper
  • Automatic Grade: Automatic
  • Driven Type: Electric
  • Power: 3.2KW
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: Hoson
  • Model Number: ZH-880PFT
  • Dimension(L*W*H): 7.5*1.1*1.4m
  • Weight: 1600kgs
  • Certification: CE, ISO9001:2008
  • After-sales Service Provided: Engineers available to service machinery overseas
  • speed: 0-180m/min
  • Usage paper: 250gms-500gms
  • color: white
  • dimension: 7.5*1.2*1.4m
  • Fold method: 1st folds 180°, 3rd folds 90°, 2nd & 4th folds 180°
  • Paper feeding: Automatic feeding, grinding unit

Packaging & Delivery

Packaging Details iron shelf / wooden case
Delivery Time 20 days

ZH-880 Pre-Folding Type Paper Box Pasting machine



Product Description



Feature

1.The machine is running steady with strengthened single-side driving system, and it is also easy for maintenance.

2.The motor is controlled by a transducer (inventer) which is available for automatic timing. It is power saved and helps to work stably.

3.Paper is feed by several thick belts under the help of vibration motor. Feeding is continuous,exact and automatic with this system.

4.Grinders are provided in both sides of machine, to make gluing more stable and firm.

5.The machine is able to fold and glue straight line boxes. In the pre-folding part, the 1st fold at180°, the 3rd fold at 90°, the 2nd & 4th fold box at 180°.Options for 180°- 135° in pre-folding part is available.

6.And infrared photo-electric control system is in this machine. Pressing unit and counter will worksynchronously with the feeding speed. Machine will slow down and stop running when no sheet there toreduce waste.

7.Small box like out-put size at 30mm is able to be done after the special design according to customer requirement.



1.Main Technical Parameter:





1

Line speed

0-180m/min , Continuous adjustment

2

Usage paper

250-500 g/ms, paperboard

3

Box forming

Straight line box

4

Fold method

1st folds 180°, 3rd folds 90°, 2nd & 4th folds 180°

5

Paper feeding

Automatic feeding, grinding unit

6

Electric Power

3.0kw

7

Dimension

7.5*1.1*1.4m

8

Weight

1600kg

9

Condition

New























Box Type


A Max

A

Min

B

Max

B

Min

Straight Line box

580-110mm

580-90mm



















                         ZH-880PFT FITTING PARTS LIST

Parts Sourced Area/Brand

Item Name

  Siemens(joint venture)

Main motor



China

Air switch

AC Contactor AC

Press bottom

Urgency

Taiwan-Italy

Belt

Taiwan

Transducer

China

Photo-electric Control



Meanwell Taiwan

Power switch

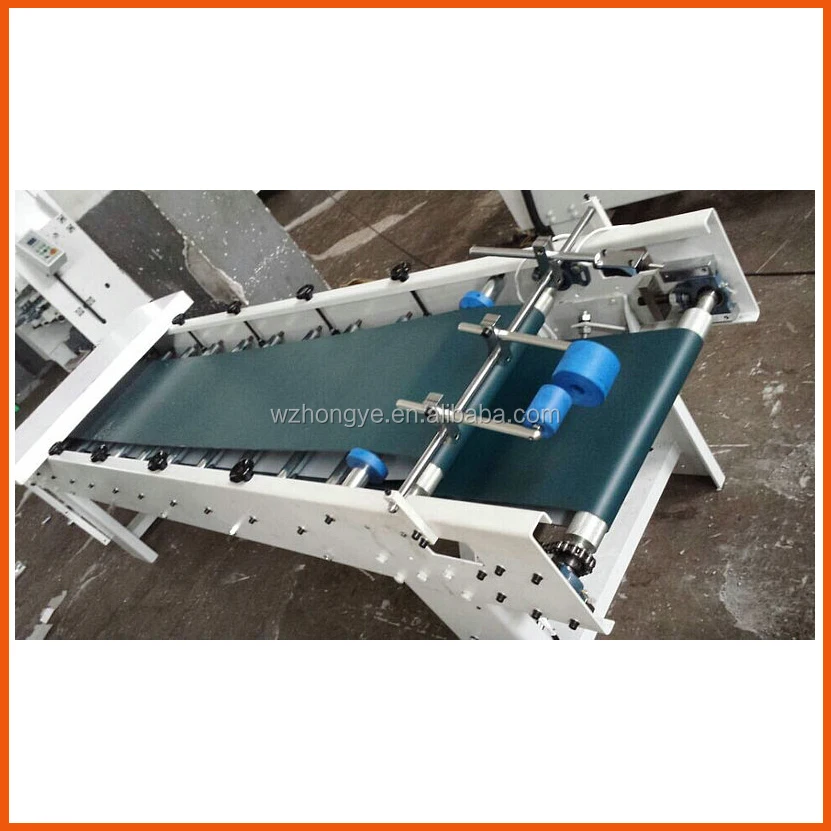

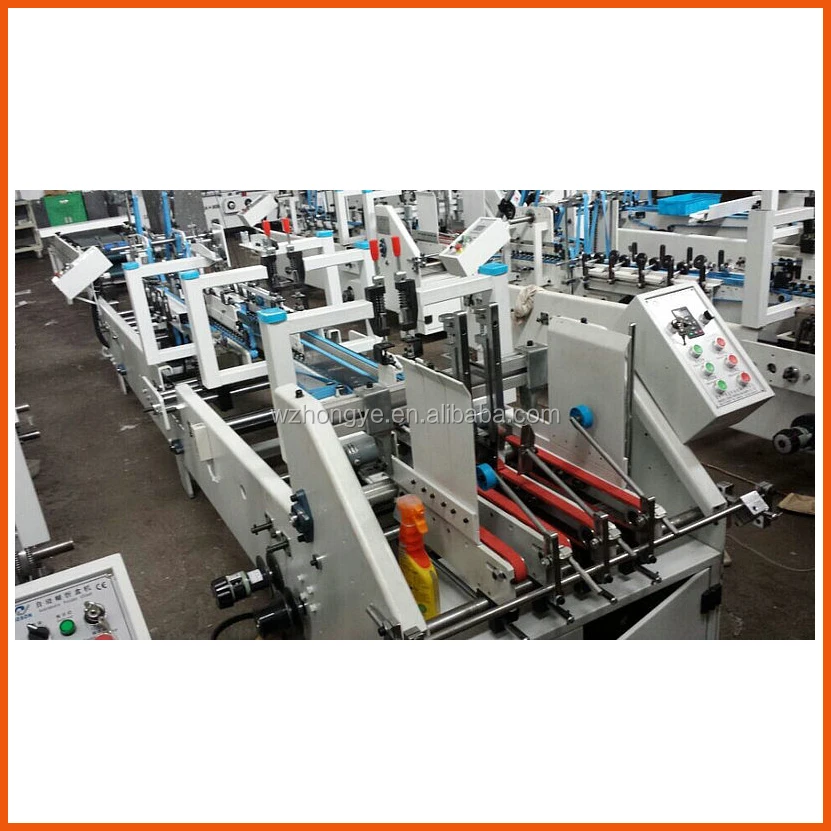

Detail photos of ZH-880PFT:

Packaging & Shipping



Company Information

We Wenzhou Hoson Printing Machinery Co., Ltd ( Hongye Factory) started in 1990s, who is the earliest manufacturer of folder and gluer machinery in Wenzhou,Zhejiang,China



Through about 15 years' efforts, a mode integrated with production-sale-service has been built and completed.



Our main series of folder gluers are 4/6 corner type, crash-lock bottom type, pre-folding type and two-fold type, etc. We have these advantages: special design, easy operation, quick adjustment and high automation.



Our Services

According to the customer's requirement, seller will arrange one technician to help to install the machine, but all the expenses like tickets,  therefrom shall be born by the buyer.

Warranty: one year. The manufacturer will send the buyer new parts ( no intentional damage). However, the courrier should be covered  by the customer.   Please note that the belts are excluding the one year's warranty.

Warranty

Warranty: one year. The manufacturer will send the buyer new parts ( no intentional damage). However, the courrier should be covered  by the customer.   Please note that the belts are excluding the one year's warranty.

Optional Equipment
