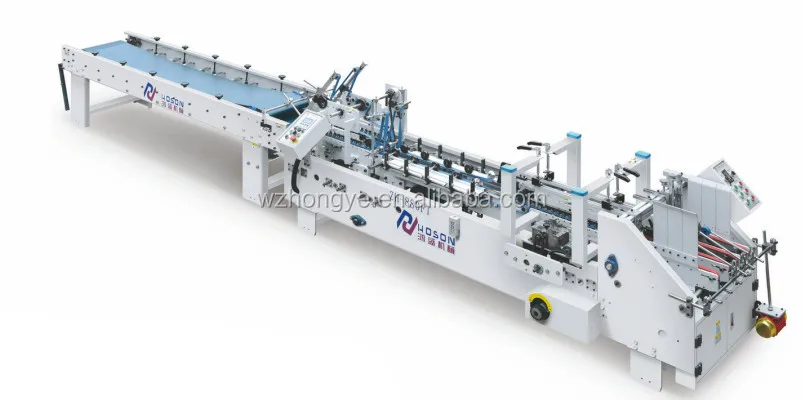

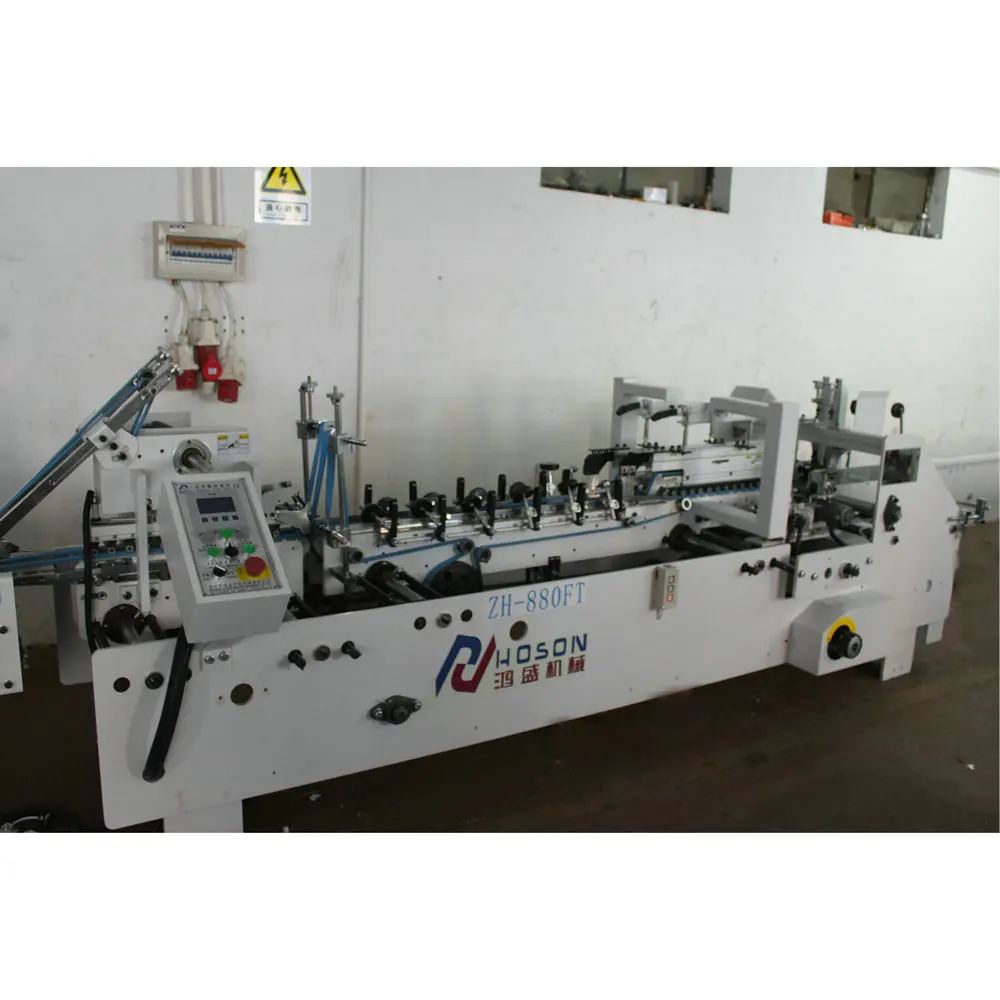

ZH-880FT Folding Box Gluing Machine

FOB Reference Price:Get Latest Price
$1.00 - $2.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Engineers available to service machinery overseas
Application:
Machinery & Hardware
Packaging Material:
Paper
Type:
Other, Packing Machine
Condition:
New
Packaging Type:
wooden/ iron
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V
Power:
2.4KW
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
HOSON
Model Number:
ZH-880FT
Weight:
1200kgs
Dimension(L*W*H):
6.1*1.1*1.4m
Certification:
CE/ISO9001
colour:
white
Line speed:
0-180m/min, continuous adjustment
Usage paper:
250-500g/ms. paperboard
Box forming:

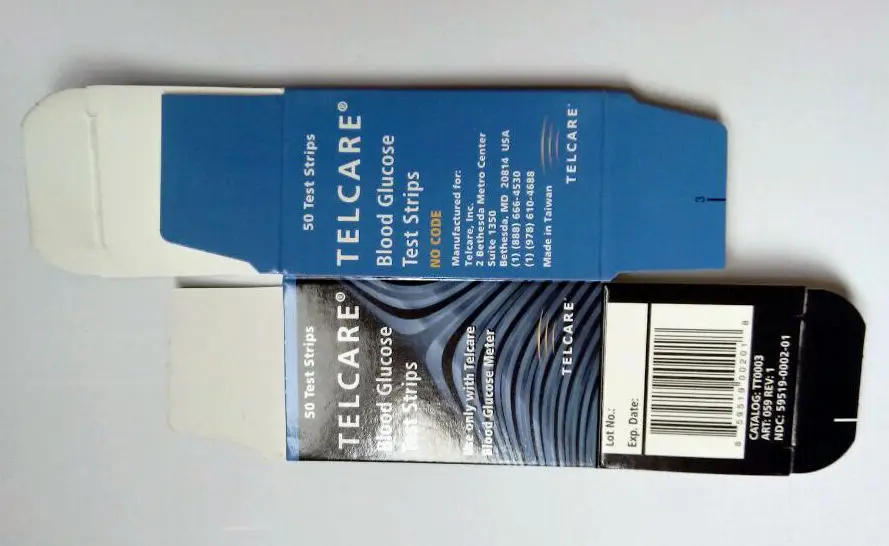

straight line box
Fold method:
1st&3rd folds 90. 2nd&4th folds 180
Paper feeding:
Automatic feeding, grinding unit
Supply Ability
Supply Ability:
1 Set/Sets per Day
Packaging & Delivery
Packaging Details
wooden/ iron shelft
Port
Ningbo/Shanghai
Lead Time :
30











Feature



- The machine is running steady with strengthened single-side driving system, and it is also easy for maintenance

- The motor is controlled by the transducer(inverter) which is available for automatic timing, It is power saved and it helps to work stably.

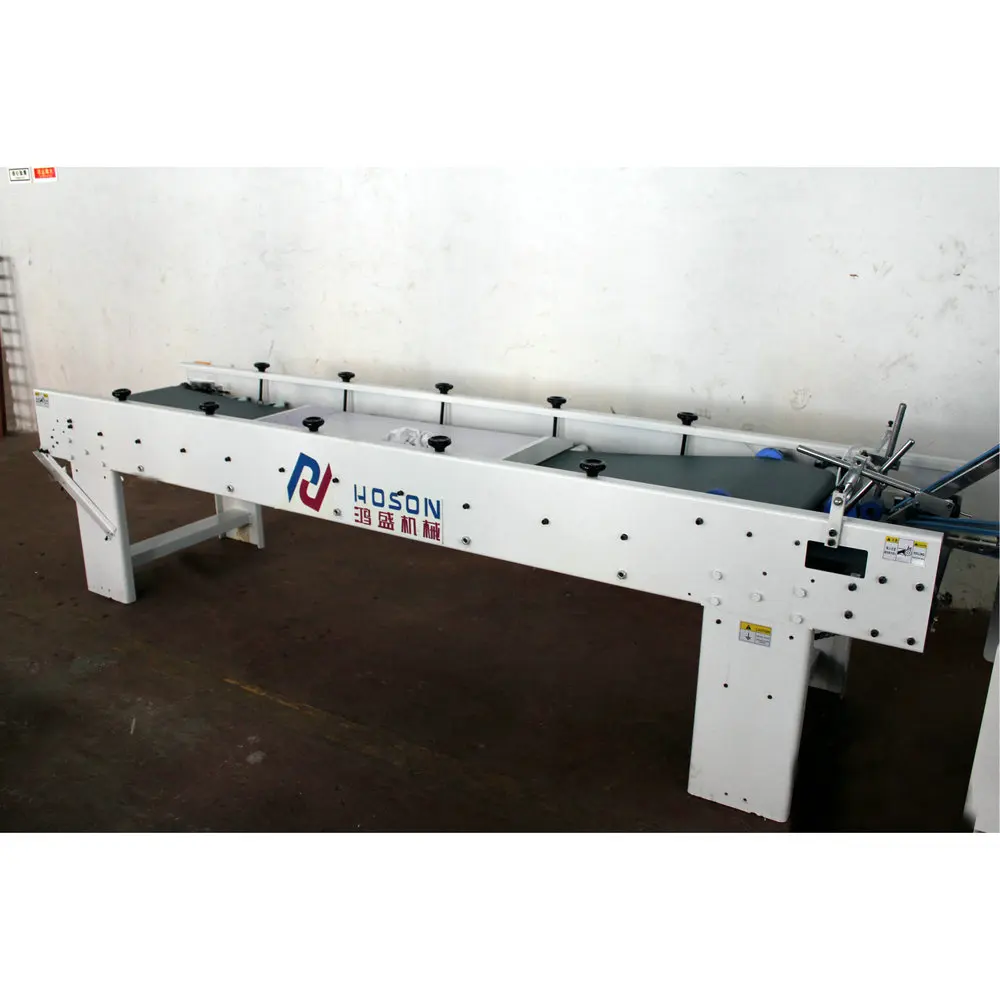

- Paper is feed by several thick belts under the help of vibration motor. Feeding is continuous, exact and automatic with this system.

- Grinders are provided in both sides of machine, to make gluing more stable and firm.

- An infrared photo-electric control syetem is in this machine, Pressing unit and counter will work synchronously with the feednig speed. Machine with slow down and stop running when no sheet there.And it's also able to reduce waste.

- Small box like out-put size at 35mm is able to be done after the special design.







Technicial Parameter



Box Type


A

Max

A

Min

B

Max

B

Min

Straight Line

box

580-90mm

580-70mm













































 Technicial Parameter

1

Line speed

0-180m/min , Continuous adjustment

2

Usage paper

200-500 g/ms, paperboard

3

Box forming

Straight line box

4

Fold method

2nd & 4th folds 180°    (no pre-folding part)

5

Paper feeding

Automatic feeding, grinding unit

6

Electric Power

2.4kw

7

Dimension

6.3*1.1*1.4m

8

Weight

1200kgs
