ZH-1800BFT Bottom Lock Carton Box Folding Gluing Machine

FOB Reference Price:Get Latest Price
US $1-2 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Boxing Machine
Condition:
New
Application:
Machinery & Hardware
Packaging Material:
Paper
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V
Power:
22KW
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
HOSON
Model Number:
ZH-1800BFT bottom folder gluer
Dimension(L*W*H):
15.0*2.3*1.7m
Weight:
8000KGS
Certification:
CE / ISO9001:2015
After-sales Service Provided:
Engineers available to service machinery overseas
Color:
White
Lin speed:
0-280m/min, continuous adjustment
Box forming:
Bottom-lock, straight line box, double walls box
Fold method:
1st & 3rd folds 90, 2nd & 4th folds 180
Usage paper:
280-750g/ms, paperboard, E/B Flute
SupplyAbility
SupplyAbility:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
iron shelf
Port
Ningbo/Shanghai
Lead Time :
45days

ZH-1800BFT Automatic Crash Bottom Folder Gluer Machine

It is designed for Crash-lock bottom box, straight line box and double walls box

 ZH-1800BFT (5)







Main Technical Parameters

Box Type


Max

A

Min

B

Max

B

Min

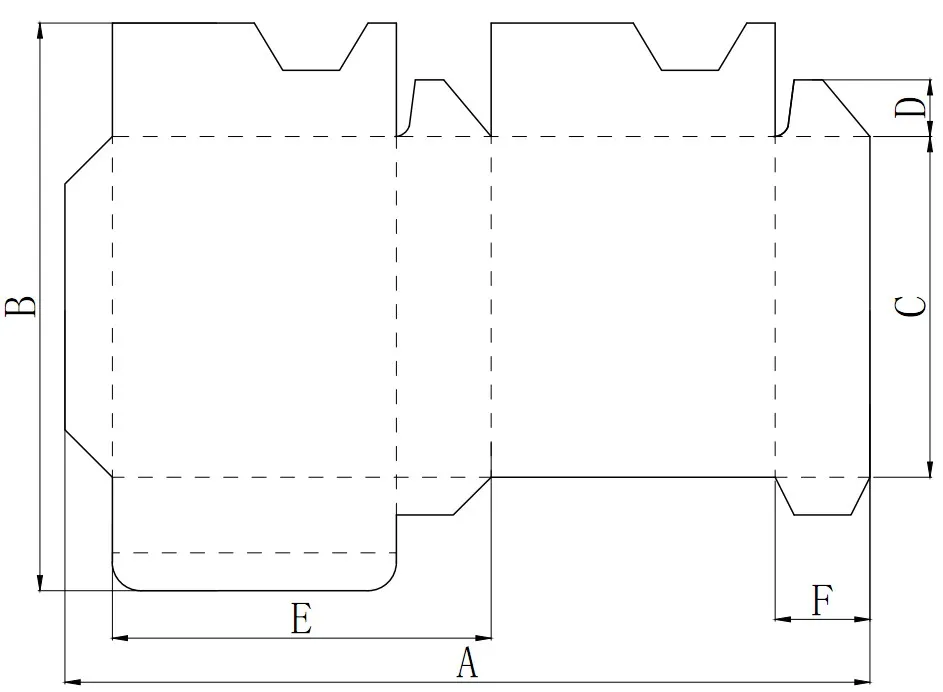

Crash-lock

Bottom

 Box



1500-350mm

900-300mm

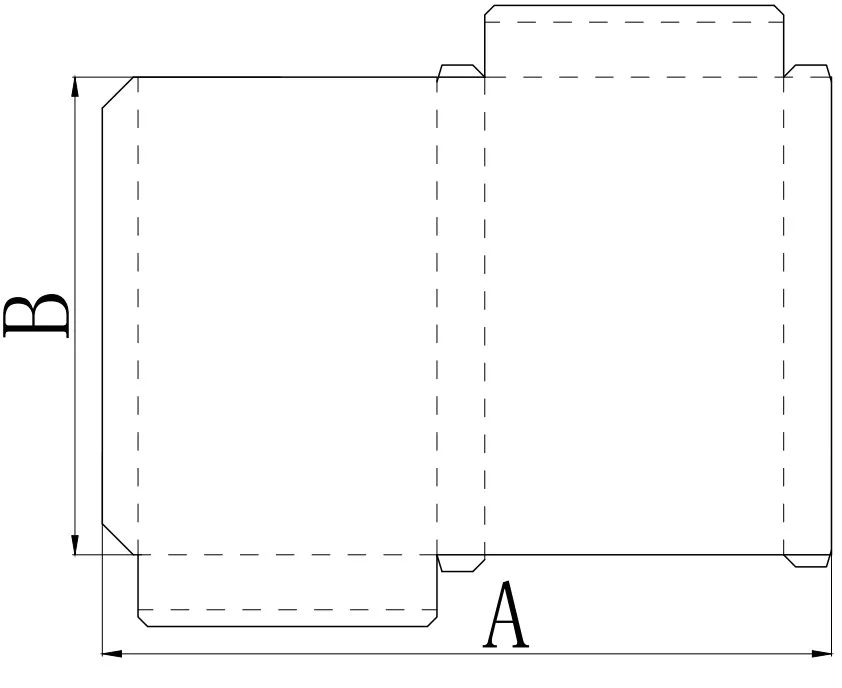

Straight Line

 box



1600-350mm

900-300mm

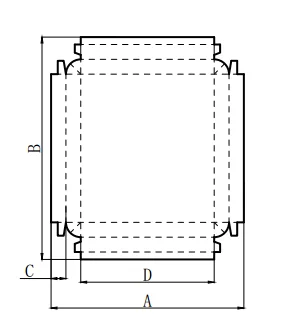

Double Walls

Box

 2

1380mm

180mm





1

Line speed

0-260m/min , Continuous adjustment

2

Usage paper

280-750 g/ms, paperboard,micro flute

3

Box forming

Bottom-lock, straight line box, double walls box

4

Fold method

1st & 3rd folds 90°, 2nd & 4th folds 180°

5

Paper feeding

Automatic feeding, grinding unit

6

Voltage

380V, 3phase

7Electric power22.0KW
8Weight7000kgs



Machine Design

- Feeder with vibration motor ,suction design

- Correction setion

- Pre-folding setion

- Lock bottom section

- Lower glue unit

- Folding and forming section

- Compressing section

- Long pressing & delivery section

- Electric controller carrier moving system

- One electric cabinet controllerd

- PLC and Touch screen, schneider transducer

- For cardboard and corrugated box.

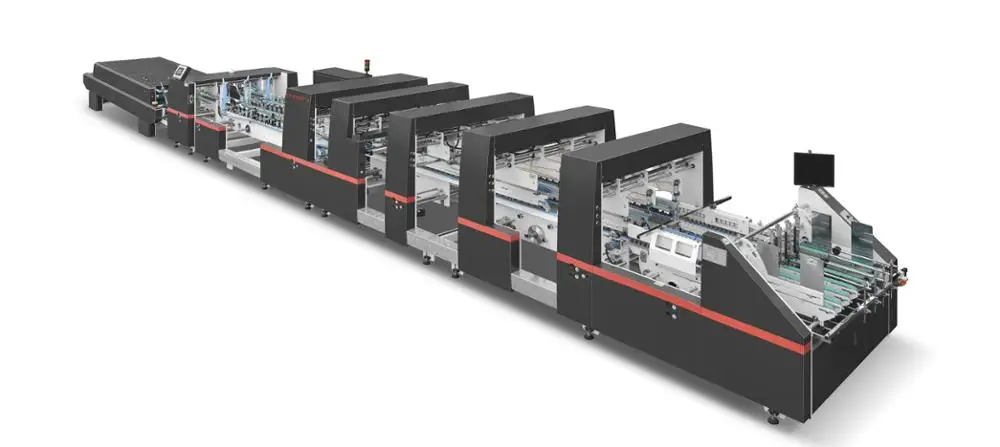

Detail Photo

ZH-1800BFT (4).jpg

 ZH-1800BFT (3).jpg
