Quick Details

  • Condition: New
  • Type: Automatic folder gluer
  • Automatic Grade: Automatic
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: HOSON
  • Model Number: ZH-1600BFST
  • Voltage: 380V
  • Power(W): 17.2KW
  • Dimension(L*W*H): 16*2.2*1.6m
  • Weight: 8300KGS
  • Certification: CE
  • Warranty: one year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Color: White auto folder gluer
  • Max.Speed: 200m/min

Packaging & Delivery

Packaging Details Out packing: iron shelf or wooden box
Inner packing:sponge paper( foam membrane), plastic bag and stretch film
Delivery Time 50 days for one set of auto folder gluer



Product Description



ZH-1600BFST Automatic 4/6 corner Folder and Gluer Machine

Feature

1.The machine is running steady with strengthened driving system, and it is also easy for maintenance.

2.The motor is controlled by a transducer (inventer) which is available for automatic timing. It is power saved and helps to work stably.

3.An electric adjusting system in the machine makes it more conveniently when adjusting the space of carriers which usually based on the double-face tooth rods adjusting system.

4.Feeder is controlled by a separated motor. Paper is usually feed by several thick belts under the help of vibration motor. Feeding is continuous,exact and automatic with this system.

5.Grinders are provided in both sides of machine, to make gluing more stable and firm.

6.Two sets of gluing units: top unit for bottom glue and lower unit for the side glue. All standard glue units apply line glue. Space adjustment is through the tooth rods.

7.PLC system and touch screen for easy operation. Out-put quantity/speed/counting etc., is able to set by this system. A remote diagnosis helps to maintenance (remote controller system included), and a photo electric system for speed control in pressing unit (speed in pressing unit is corresponding automatically with the one in feeding unit). Counting through photo-electric sensor & electromagnet kicking.

8.Pressing unit with pneumatic design. And the upper belt is able to work separately.Pressing also by a sponge belt in this section to keep out-put in a perfect condition. A transverse paper collection table after the pressing unit helps to collect boxes quickly.

9.Pre-folding section or correction section is for option as per real need. In the pre-folding part, the 1st fold at 180°, the 3rd fold at 90°, the 2nd & 4th fold box at 180°. The correction section helps paper running and folding in the right line.

10.Special parts for this type:three-gun cold glue spray system from hhs, Baumer (hot-melt for option), Servo system from Yaskawaz.

11.Belts in the main part of the machine are imported.

12.Pre-folding in 135° design/plasma device is optional. And the special design is available.





Main Technical Parameters:



1

Line speed

0-200m/min , Continuous adjustment

2

Usage paper

350-800 g/ms, paperboard,E/B flute

3

Box forming

4/6corner box, bottom-lock, straight line box, double walls box

4

Fold method

1st folds 180°,3rd folds 90°, 2nd & 4th folds 180°

5

Paper feeding

Automatic feeding, grinding unit

6

Electric Power

17.2 kw

7

Dimension

16*2.2*1.6m

8

Weight

8300 kg

9

Condition

New



























Box Type


A Max

A

Min

B

Max

B

Min

C

Max

C

Min

D

Max

D

Min

6 Corner Collapsible Box

1200-400mm

800-260mm

100-30mm



4 Corner Collapsible Box

1200-300mm

800-260mm

100-30mm



Crash-lock Bottom Box

1250-350mm

900-400mm

300mm

50mm

Straight Line box

1380-300mm

900-300mm





Double Walls Box

980mm

900mm

150mm

800mm





ZH-1600BFST FITTING PARTS LIST



Parts Sourced Area/brand

Item Name

   Siemens

engine

Schneider

Air switch

AC Contactor AC

Press button

Urgency

Nitta Japan

Belts

hhs Germany

Spray Gluing System

Schneider

Transducer

Schneider

PLC

Taiwan

Wireless remote controller

Meanwell –Taiwan

Power switch

YHY Japan

Bearing

Yaskawa Japan

Servo Motor

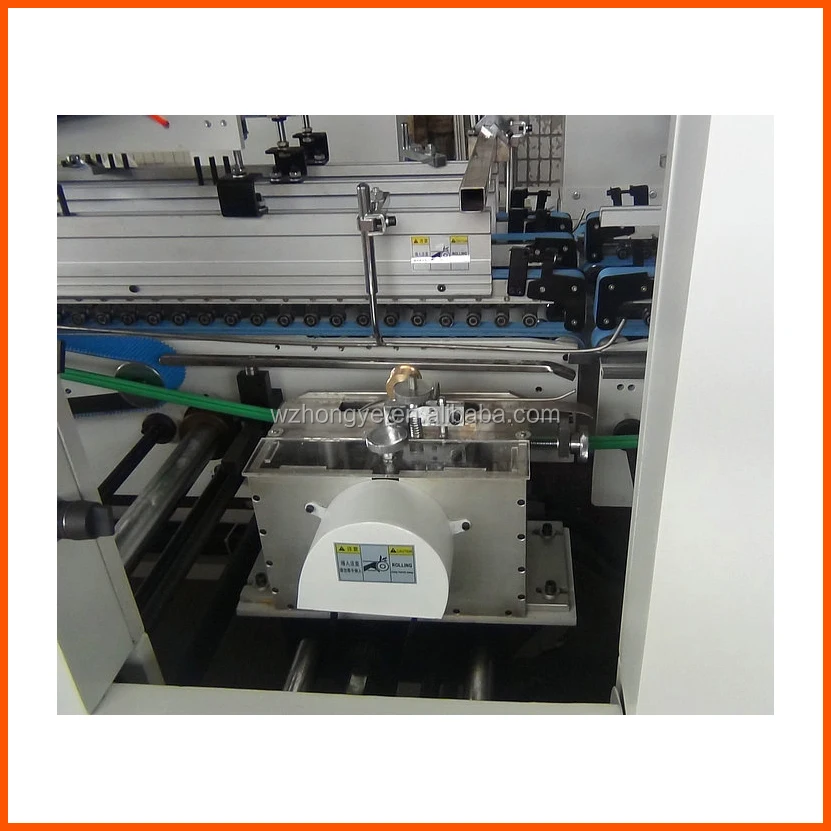

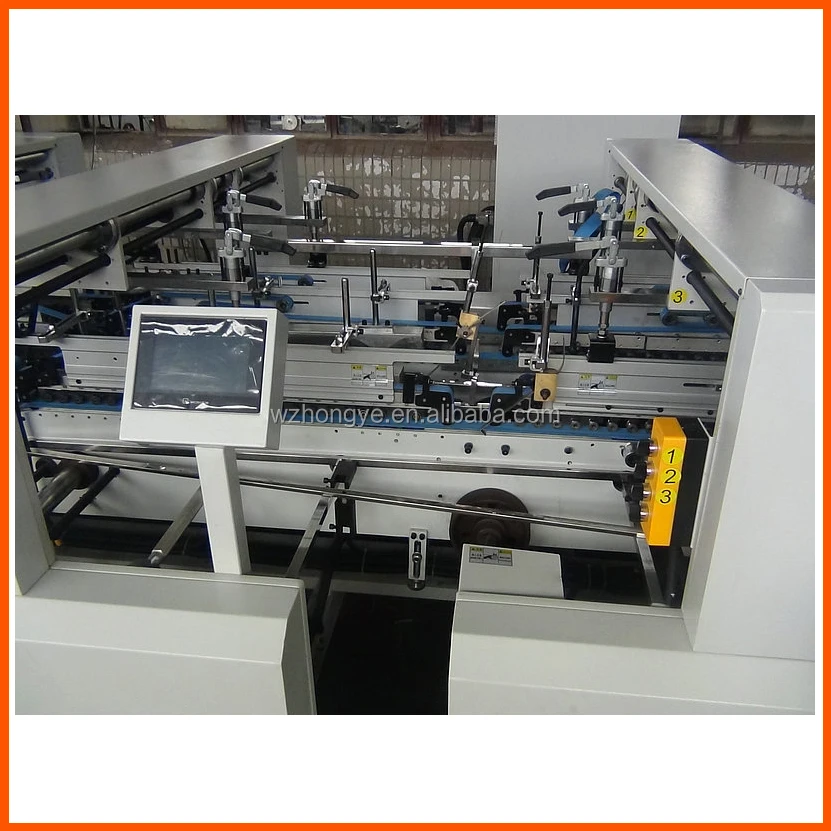

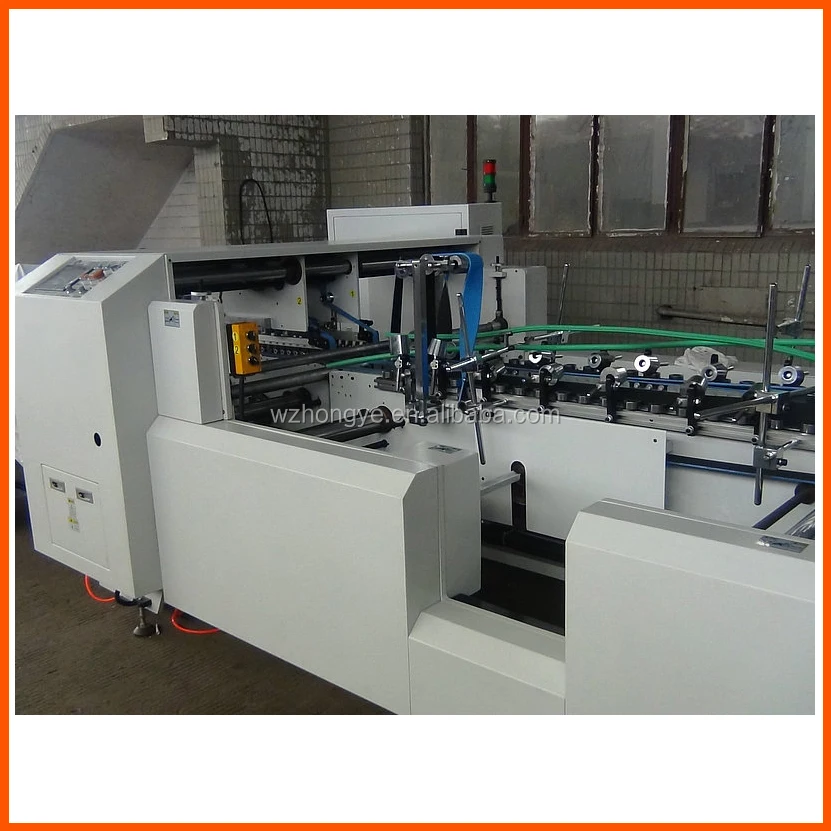

Details Photos for  ZH-1600BFST Automatic 4/6 corner Folder and Gluer Machine
